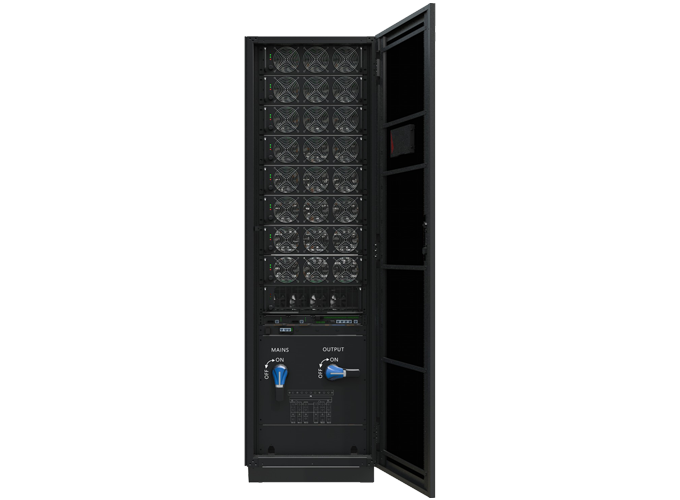

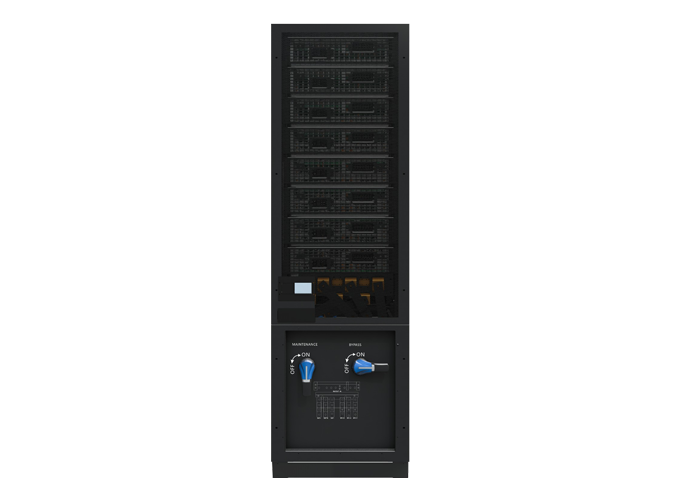

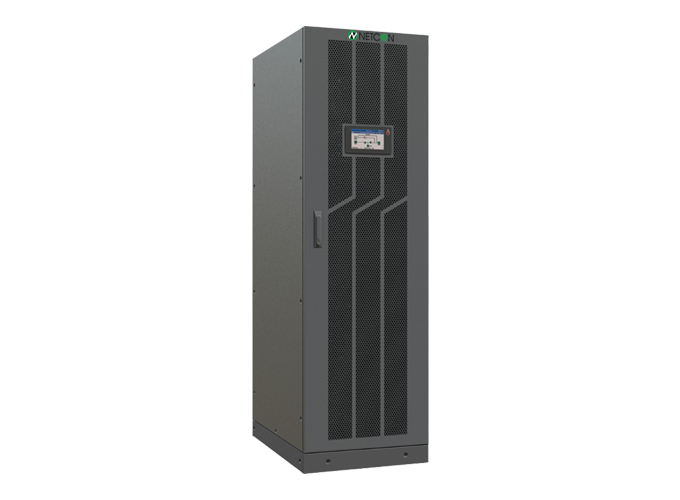

NETCON NTRM Modular Series UPS, 3:3 Phase

NETCON NTRM Modular Series UPS, 3:3 Phase

Modular UPS | 80-1000KVA

  • Modular Scalability: Add or remove power modules without system downtime.
  • High Energy Efficiency: Up to 96% efficiency reduces energy costs.
  • Redundancy: N+1, N+X redundancy ensures system reliability and operational continuity.
  • Smart Maintenance: Hot-swappable modules reduce repair times and minimize downtime.
  • Space-Saving Design: Compact footprint allows for optimal use of floor space.
  • Battery Flexibility: Compatible with VRLA & Li-ion batteries for extended backup.
  • Wide input voltage range: Line voltage - 138-485V, derates to 40% if input voltage < 305V.
  • Energy Saving: ECO mode helps reduce power use.
  • Load capacity: Output PF=1.0, Supports unbalanced, inductive, and capacitive loads
  • Compatible with generator: Power walk-in reduces start current impact and generator size.
Applications: Data centers, telecoms, and critical applications need reliable backup power.

Netcon 80-120kVA Modular UPS is a state-of-the-art, scalable power backup system designed for mission-critical applications. With a modular architecture, it allows seamless capacity expansion and easy maintenance. This system is engineered for high efficiency, reliability, and flexibility, making it ideal for data centers, telecommunications, healthcare, and industrial environments where uptime is crucial.

Netcon 80-120kVA Modular UPS is a future-proof power solution that adapts to the changing needs of modern infrastructure. Its modular, scalable design allows for capacity expansion and maintenance without downtime. The high-efficiency architecture, redundancy options, and advanced battery management make it ideal for industries that demand 24/7 uptime.   Modular UPS is CE, IEC, and EMC certified, ensuring compliance with international safety, quality, and electromagnetic compatibility standards.

Name Certificate
CE Certificate View Certificate
IEC Test Report View Certificate
INPUT
Power factor ≥0.99
Bypass Voltage Range 3% (100% Linear load) Max. voltage: 220V: ＋25% (Optional ＋10%,＋15%,＋20%) 230V: ＋20% (Optional ＋10%, ＋15%) 240V: ＋15% (Optional ＋10%) Min. voltage: －45% (Optional －10%, －15%, －20%, －30%)
Frequency Range 40Hz-70Hz
Harmonic distortion (THDi) ≤3% (100% Linear load)
Voltage Range 138~305Vac for 40% Load; 305~485Vac for 100% Load
Power Walk-in Support
Nominal Voltage (Vac) 380/400/415Vac, (3Ph+N+PE)
Bypass frequency tracking range ±10%
Generator Input Support
OUTPUT
Voltage Range 380/400/415Vac, (3Ph+N+PE)
Crest Factor 3:1
Voltage Regulation ±1%
Power Factor 1.0
Frequency Range Line Mode - Synchronize with input, when the input frequency ＞±10% (±1%/±2%/±4%/±5% optional), output 50/60 (±0.1Hz) Battery Mode : (50/60±0.1%)Hz
Efficiency Upto 96%
Harmonic distortion (THDv) ≤2% with linear load; ≤4% with nonlinear load
BATTERY
Battery Voltage 360Vdc～600Vdc
Battery Type VRLA / Li
Charging current (Max.) 20A (Max.)
SYSTEM FEATURES
Overheat Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately
Transfer time Utility to Battery: 0ms; Utility to bypass: 0ms
Overload Inverter mode: ≤110% 60min, ≤125% 10min, ≤150% 1min, ＞150% 1.2s shut down inverter Bypass mode: 30°C: 135% for long term; 40°C: 125% for long term; >1000%, 100ms
CABINET MODEL
Capacity 100-1000KVA
Module Capacity 40/50/60KVA
Max. Number 2,3,5,8
