Netcon
Netcon U/UTP- LSZH/PVC

Netcon U/UTP- LSZH/PVC

Cat6A Cabling Solutions |Cat 6A U/UTP LSZH/PVC Ethernet Cable

  • Application

    • 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
    • 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
    • 100VG-AnyLAN / Broadband Video / Voice / T1 / ISDN
    • 10 Gigabit (500Mhz) Transmission up to length of 100Mtrs



    Standards Conformance

    Horizontal and backbone cable10GBASE-T 10 Gigabit Ethernet
    • Performance - ANSI/TIA 568.2-D Cat.6A / ISO/IEC 11801
    • Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-11-1
    • PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)
    • Environmental - Conforms to RoHS and REACH Directives
    • Flame testing - EN 60332-1-2 | EN61034-2 | EN 60754-1/2

Standard color - White. Option Available - Blue, Orange, Red, Purple.



Applications: Netcon's CAT 6A U/UTP LSOH Ethernet Cable is a high-speed, halogen-free data cable designed for 10 Gigabit Ethernet (10GBASE-T) applications in data centers, commercial buildings, and enterprise networks. It supports up to 500 MHz bandwidth, ensuring consistent transmission performance and minimal signal attenuation in structured network environments.

High-Speed Performance and Construction

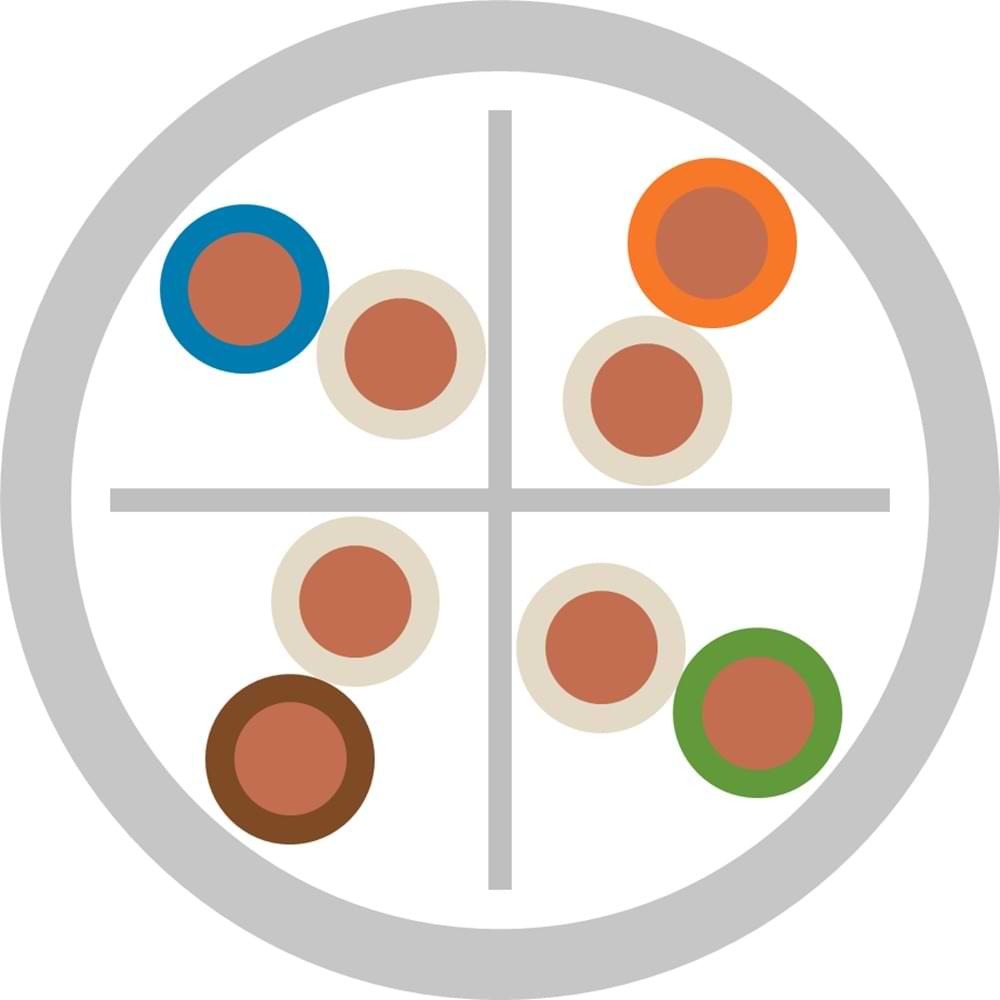

Manufactured with AWG23 solid copper conductors and unshielded twisted pairs (U/UTP), the cable offers superior NEXT and return loss performance over extended distances. It delivers stable and interference-free connectivity for VoIP, video conferencing, cloud applications, and data streaming. The CAT6A design allows seamless operation of 10G Ethernet networks while maintaining backward compatibility with CAT6 and CAT5e systems.

Fire Safety and Compliance

The LSOH (Low Smoke Zero Halogen) outer sheath reduces smoke and toxic gas emissions in case of fire, ensuring safety in offices, hospitals, schools, airports, and public buildings. This cable meets international standards such as ISO/IEC 11801, EN 50173, and IEC 60332-1, and can be supplied with CPR-rated (Cca or Dca) classification upon request.

Applications and Installation

Designed for horizontal cabling and patch panel connections, CAT6A U/UTP LSOH is suitable for fixed installations in structured cabling systems. It performs optimally in IT rooms, backbone routes, server racks, and network distribution panels, supporting next-generation data transmission up to 10 Gbps with long-term stability and reliability.
