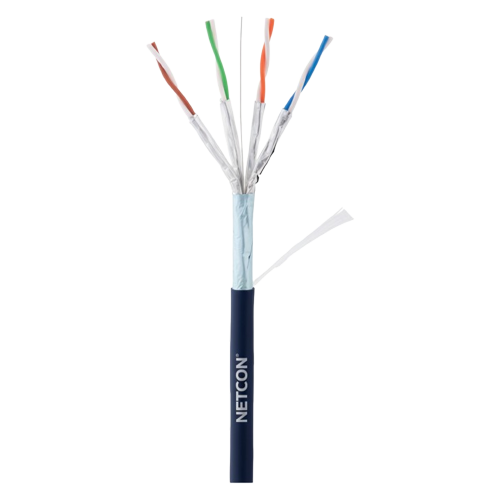

Netcon S/FTP- LSZH

Netcon S/FTP- LSZH

Cat6A Cabling Solutions |Cat 6A S/FTP LSZH Ethernet Cable

Applications

  • 10GBASE-T 10 Gigabit Ethernet (up to 100 meters, 500 MHz)
  • 1000BASE-T / 1000BASE-TX Gigabit Ethernet
  • 100BASE-TX Fast Ethernet / 10BASE-T Ethernet
  • Supports broadband video, VoIP, data centers, cloud computing, and high-speed data networks
  • Suitable for shielded structured cabling systems requiring high EMI protection
  • Ideal for mission-critical environments such as airports, hospitals, commercial buildings, and industrial networks

Standards Conformance

  • Application Support:
    Horizontal and backbone cabling for 10GBASE-T 10 Gigabit Ethernet
  • Performance Standards:
    Complies with ANSI/TIA-568.2-D Category 6A and ISO/IEC 11801 Class EA
  • Construction Standards:
    IEC 61156-5 (Cat6A cables)
    EN 50288-4-1 / EN 50288-11-1 (shielded cables)
  • Fire & Safety (LSZH / CPR):
    EN 13501-6:2014 (CPR Classification – Cca, Dca, etc.)
    IEC 60332-1-2 (Flame propagation)
    EN 61034-2 (Smoke density)
    EN 60754-1 & 60754-2 (Halogen-free / low toxicity)
  • PoE Capability:
    Supports IEEE 802.3bt Type 3 & Type 4 (PoE++ / 4PPoE)
  • Environmental Compliance:
    Fully compliant with RoHS and REACH directives

Standard color - Purple. Option Available - Blue, Orange, Red, White.

Applications: Netcon’s Cat 6A S/FTP Data Cables are engineered for 10 Gigabit Ethernet transmission with maximum protection in high-interference environments. Each twisted pair is individually foil-shielded and enclosed within a braided screen, providing advanced EMI immunity and low signal attenuation at up to 500 MHz. Featuring 23 AWG solid copper conductors, these cables are available with LSZH, PVC, or PE sheaths for safe indoor and rugged outdoor installations. Ideal for data centers, industrial networks, and backbone systems, Netcon's S/FTP Cat 6A cables comply with ISO/IEC 11801 and TIA/EIA-568.2-D standards for global reliability and performance.

High-Speed Performance and Construction

Manufactured with AWG23 solid copper conductors and individually shielded twisted pairs with an overall braid (S/FTP), the cable delivers exceptional NEXT, AXT, and return loss performance over extended distances. The enhanced shielding ensures maximum protection against electromagnetic interference (EMI) and alien crosstalk, providing stable, high-speed, and interference-free connectivity for VoIP, video conferencing, cloud applications, and high-bandwidth data streaming.

The CAT6A S/FTP design fully supports 10 Gigabit Ethernet (10GBASE-T) networks while maintaining backward compatibility with Cat6 and Cat5e systems, making it ideal for high-performance networking environments.

Fire Safety and Compliance

The LSZH (Low Smoke Zero Halogen) outer sheath minimizes smoke emission and eliminates halogen gases in the event of fire, ensuring enhanced safety in offices, hospitals, schools, airports, and public infrastructure.

This cable complies with international standards such as ISO/IEC 11801, EN 50173, and IEC 60332-1, and can be supplied with CPR classification (Cca, Dca, or higher ratings) upon request.
