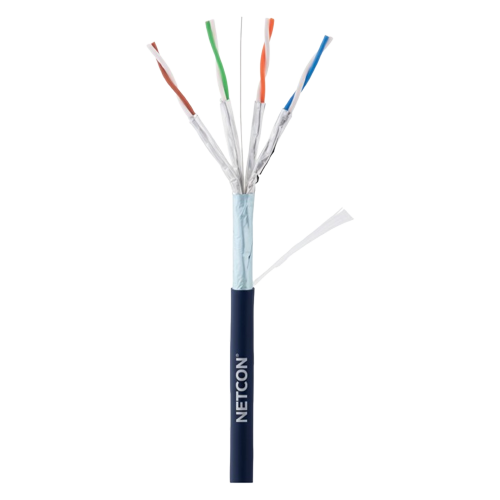

Netcon F/FTP- LSZH/PVC

Netcon F/FTP- LSZH/PVC

Cat6A Cabling Solutions |Cat 6A F/FTP LSZH Ethernet Cable

  • Applications

    • 10GBASE-T 10 Gigabit Ethernet (up to 100 meters, 500 MHz)
    • 1000BASE-T / 1000BASE-TX Gigabit Ethernet
    • 100BASE-TX Fast Ethernet / 10BASE-T Ethernet
    • Supports broadband video, VoIP, cloud computing, and high-speed data transmission
    • Ideal for shielded structured cabling systems requiring enhanced protection against EMI and alien crosstalk
    • Suitable for data centers, enterprise networks, commercial buildings, and industrial environments

    Standards Conformance

    • Application Support:
      Horizontal and backbone cabling for 10GBASE-T 10 Gigabit Ethernet
    • Performance Standards:
      Complies with ANSI/TIA-568.2-D Category 6A and ISO/IEC 11801 Class EA
    • Construction Standards:
      IEC 61156-5 (Category 6A cables)
      EN 50288-4-1 / EN 50288-11-1 (shielded F/FTP cables)
    • Fire & Safety (LSZH / CPR):
      EN 13501-6:2014 (CPR Classification – Cca, Dca, etc.)
      IEC 60332-1-2 (Flame propagation)
      EN 61034-2 (Smoke density)
      EN 60754-1 & 60754-2 (Halogen-free / low toxicity)
    • PoE Capability:
      Supports IEEE 802.3bt Type 3 & Type 4 (PoE++ / 4PPoE)
    • Environmental Compliance:
      Fully compliant with RoHS and REACH directives

Standard color - White. Option Available - Blue, Orange, Red, Purple.



Applications: Netcon's CAT 6A F/FTP LSZH Ethernet Cable is a high-performance, fully shielded data cable designed for 10 Gigabit Ethernet (10GBASE-T) applications in data centers, commercial buildings, and enterprise networks. Featuring individually foil-shielded twisted pairs with an overall foil screen (F/FTP), it provides excellent protection against electromagnetic interference (EMI) and alien crosstalk, ensuring superior signal integrity.

High-Speed Performance and Construction

Manufactured with AWG23 solid copper conductors and individually foil-shielded twisted pairs with an overall foil screen (F/FTP), the cable provides excellent NEXT, AXT (alien crosstalk), and return loss performance over extended distances. The dual-layer shielding design ensures superior protection against electromagnetic interference (EMI), delivering stable, high-speed, and interference-free connectivity for VoIP, video conferencing, cloud applications, and high-bandwidth data streaming.

Fire Safety and Compliance

The LSZH (Low Smoke Zero Halogen) outer sheath minimizes smoke emission and eliminates toxic halogen gases in the event of fire, ensuring enhanced safety in offices, hospitals, schools, airports, and public buildings.

This cable complies with international standards such as ISO/IEC 11801, EN 50173, and IEC 60332-1, and can be supplied with CPR-rated classifications (Cca, Dca, or higher) upon request.

Applications and Installation

Designed for horizontal cabling and patch panel terminations, the Cat6A F/FTP LSZH cable is ideal for fixed installations in structured cabling systems where shielding performance is critical. It performs optimally in data centers, IT rooms, backbone infrastructure, server racks, and network distribution panels.

The cable supports 10 Gbps data transmission up to 100 meters, ensuring enhanced signal integrity, reduced interference, and long-term reliability for next-generation network infrastructure.
