Netcon Cat6 23AWG U/UTP

Netcon Cat6 23AWG U/UTP

Outdoor Cabling Solution |Outdoor PE jacket

  • Applications

    1000BASE-T Gigabit Ethernet / 1000BASE-TX
    100BASE-TX Fast Ethernet / 10BASE-T Ethernet
    Voice, VoIP, ISDN, and broadband video transmission
    Supports data transmission up to 1 Gbps (250 MHz) for distances up to 100 meters
    Suitable for outdoor LAN, campus networks, inter-building links, and structured cabling systems
    Designed for aerial, duct, and direct outdoor installations requiring environmental durability

    Standards Conformance

    Application Support:
    Horizontal and backbone cabling for Category 6 outdoor applications

    Performance:
    ANSI/TIA 568.2-D Cat.6 / ISO/IEC 11801 Class E

    Construction:
    IEC 61156-5 / EN 50288-6-1

    PoE Capability:
    IEEE 802.3af / 802.3at (PoE & PoE+)

    Environmental:
    Complies with RoHS and REACH Directives
    UV-resistant and moisture-resistant PE outer sheath for outdoor use

    Flame Testing:
    IEC 60332-1-2 (basic flame propagation standard, where applicable)

    Sheath Type:
    PE (Polyethylene) Outdoor Jacket

    Standard Color:
    Black

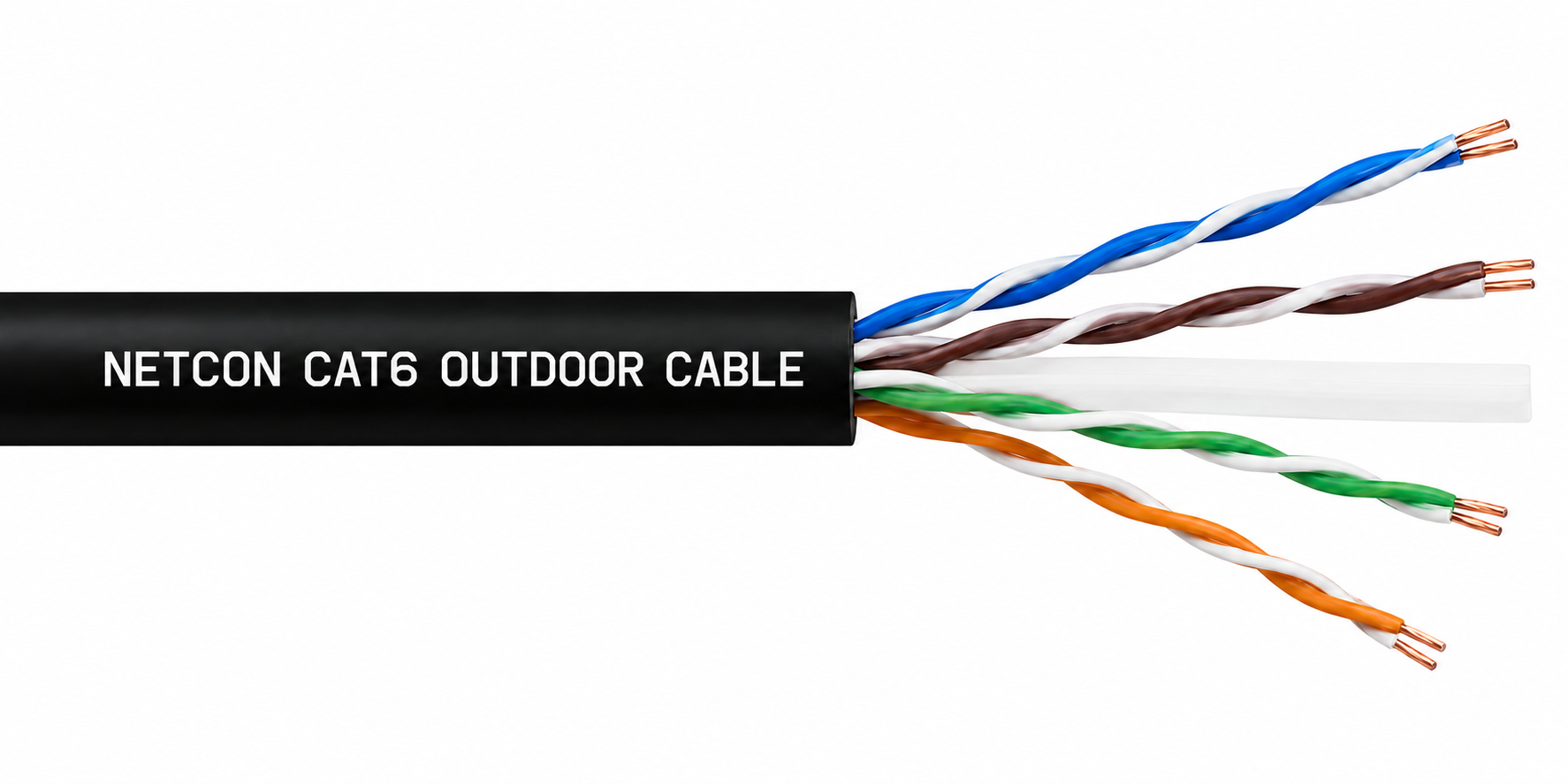

Applications: Netcon's CAT 6 23AWG U/UTP PE Jacket Outdoor Ethernet Cable is a high-speed data cable specifically designed for Gigabit Ethernet (1000BASE-T) applications in outdoor environments, including campus networks, industrial sites, and inter-building connections. Featuring unshielded twisted pairs (U/UTP) with 23AWG solid copper conductors, it ensures reliable performance and efficient signal transmission for standard networking requirements. The cable is equipped with a durable polyethylene (PE) outer jacket, providing excellent resistance to UV radiation, moisture, and harsh environmental conditions, making it suitable for direct outdoor installation. Supporting up to 250 MHz bandwidth, it delivers stable data transmission with low attenuation and minimal crosstalk in structured cabling systems. Ideal for voice, data, and video applications, this outdoor-rated cable offers dependable connectivity for extended network infrastructure while maintaining performance and durability in demanding environments.

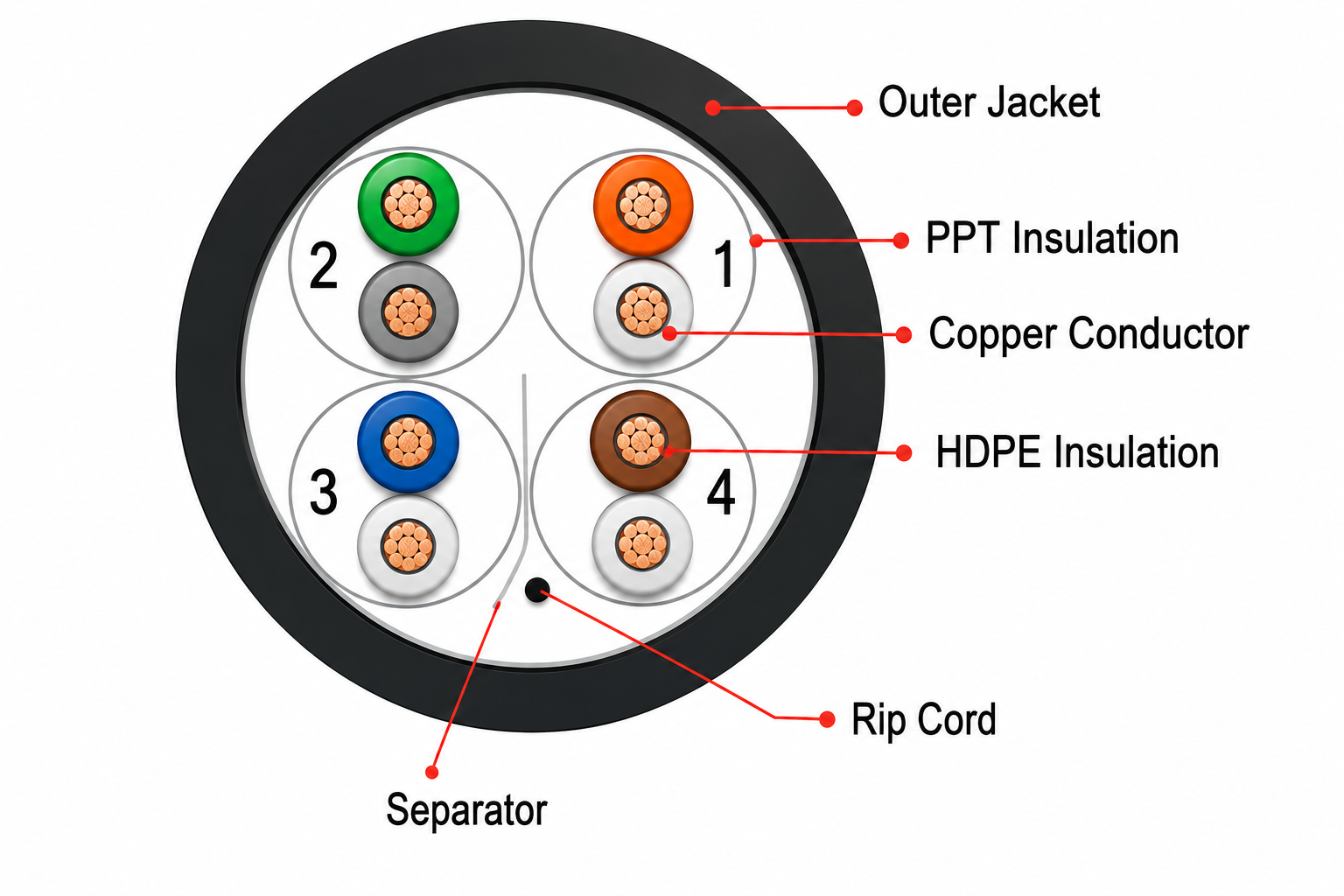

High-Speed Performance and Construction

Manufactured with 23AWG solid copper conductors and unshielded twisted pairs (U/UTP), this Cat6 outdoor cable delivers reliable NEXT and return loss performance for standard networking environments. It ensures stable and consistent connectivity for applications such as VoIP, video conferencing, cloud services, and data streaming. The Cat6 design supports Gigabit Ethernet (1G) with bandwidth up to 250 MHz, while maintaining backward compatibility with Cat5e systems. The robust polyethylene (PE) outer jacket provides excellent resistance to UV radiation, moisture, and temperature variations, making it ideal for outdoor deployments.

Outdoor Durability and Compliance

The PE (Polyethylene) outer sheath is specifically designed for outdoor use, offering superior protection against environmental factors such as sunlight, rain, and humidity. This makes the cable suitable for aerial installations, duct installations, and inter-building connections. The cable complies with international standards such as ISO/IEC 11801 and EN 50173, ensuring consistent performance and reliability in structured cabling systems. Additional protection options (such as gel-filled or water-blocking tape) may be available upon request for enhanced moisture resistance.

Applications and Installation

Designed for outdoor horizontal cabling and external network links, the Cat6 23AWG U/UTP PE jacket cable is ideal for campus networks, industrial environments, and building-to-building connections. It performs efficiently in outdoor network infrastructures, supporting Gigabit data transmission up to 1 Gbps with stable performance over long distances. Its durable construction ensures long-term reliability even in harsh environmental conditions.
