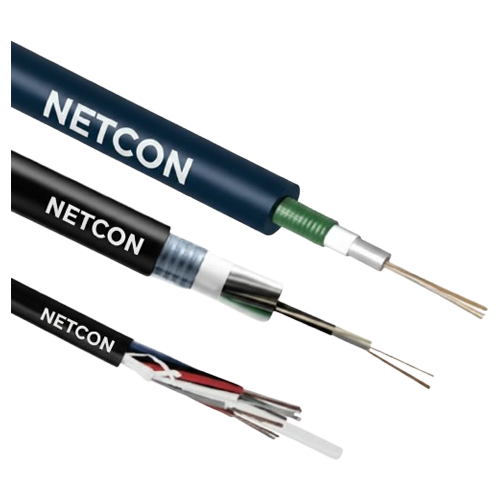

Netcon Cat6 23AWG S/FTP

Netcon Cat6 23AWG S/FTP

Outdoor Cabling Solution |Outdoor PE jacket

Applications

1000BASE-T Gigabit Ethernet / 1000BASE-TX
100BASE-TX Fast Ethernet / 10BASE-T Ethernet
Voice, VoIP, ISDN, and broadband video transmission
Supports data transmission up to 1 Gbps (250 MHz) for distances up to 100 meters
Suitable for outdoor LAN, campus networks, inter-building links, and shielded structured cabling systems
Designed for aerial, duct, and direct outdoor installations requiring both environmental durability and high protection against EMI and alien crosstalk

Standards Conformance

Application Support:
Horizontal and backbone cabling for Category 6 shielded outdoor applications

Performance:
ANSI/TIA 568.2-D Cat.6 / ISO/IEC 11801 Class E

Construction:
IEC 61156-5 / EN 50288-6-1 (S/FTP shielded cable construction)

PoE Capability:
IEEE 802.3af / 802.3at (PoE & PoE+)

Environmental:
Complies with RoHS and REACH Directives
UV-resistant and moisture-resistant PE outer sheath for outdoor use

Fire & Safety (LSZH Inner Sheath):
IEC 60332-1-2 (Flame propagation)
EN 61034-2 (Smoke density)
EN 60754-1 & EN 60754-2 (Halogen-free / low toxicity)

Sheath Type:
Dual sheath construction – LSZH inner sheath with PE (Polyethylene) outer jacket for outdoor protection


Standard Color:
Black

Applications: Netcon's CAT 6 S/FTP Outdoor Ethernet Cable is a high-performance data cable specifically designed for Gigabit Ethernet (1000BASE-T) applications in outdoor environments, including campus networks, industrial sites, and inter-building connections. Featuring individually shielded twisted pairs with an overall braided shield (S/FTP) and solid copper conductors, it ensures superior signal integrity and reliable transmission even in electrically noisy environments. The cable is equipped with a durable polyethylene (PE) outer jacket, providing excellent resistance to UV radiation, moisture, and harsh environmental conditions, making it suitable for direct outdoor installation. The advanced shielding design offers enhanced protection against electromagnetic interference (EMI) and alien crosstalk, ensuring consistent performance in challenging outdoor deployments. Supporting up to 250 MHz bandwidth, it delivers stable data transmission with low attenuation and minimal interference in structured cabling systems. Ideal for voice, data, and video applications, this outdoor-rated cable offers dependable, high-quality connectivity for extended network infrastructure while maintaining performance and durability in demanding environments.

High-Speed Performance and Construction
Manufactured with 23AWG solid copper conductors and individually shielded twisted pairs with an overall braided shield (S/FTP), this Cat6 outdoor cable delivers excellent NEXT, AXT (alien crosstalk), and return loss performance for demanding networking environments. The advanced shielding design provides superior protection against electromagnetic interference (EMI), ensuring stable and consistent connectivity for applications such as VoIP, video conferencing, cloud services, and data streaming. The Cat6 design supports Gigabit Ethernet (1G) with bandwidth up to 250 MHz, while maintaining backward compatibility with Cat5e systems. The dual-layer construction with LSZH inner sheath and robust polyethylene (PE) outer jacket provides both fire safety and outdoor durability.

Outdoor Durability and Compliance
The PE (Polyethylene) outer sheath is specifically designed for outdoor use, offering excellent resistance to UV radiation, moisture, and temperature variations. Combined with an LSZH inner layer, the cable ensures enhanced safety and environmental protection. This makes it suitable for aerial installations, duct installations, and inter-building connections. The cable complies with international standards such as ISO/IEC 11801 and EN 50173, ensuring consistent performance and reliability in structured cabling systems. Additional protection options (such as gel-filled or water-blocking tape) may be available upon request for enhanced moisture resistance.

Applications and Installation
Designed for outdoor horizontal cabling and external network links, the Cat6 23AWG S/FTP LSZH Outdoor PE cable is ideal for campus networks, industrial environments, and building-to-building connections where high shielding performance is required. It performs efficiently in outdoor network infrastructures, supporting Gigabit data transmission up to 1 Gbps with stable performance over long distances. Its durable and shielded construction ensures long-term reliability, enhanced signal integrity, and minimal interference even in harsh environmental and high-noise conditions.
