Wall Mount IP Enclosures |IP66
Design:
Monoblock welded construction for enhanced rigidity and long-term durability.
Material Construction:
Surface Finish:
Multi-stage surface treatment including iron phosphating and nano coating, followed by RAL 7035 epoxy polyester outdoor powder coating for superior corrosion resistance and outdoor performance.
Ingress Protection:
Mechanical Strength:
Mounting & Installation Options:
Plinth Options:

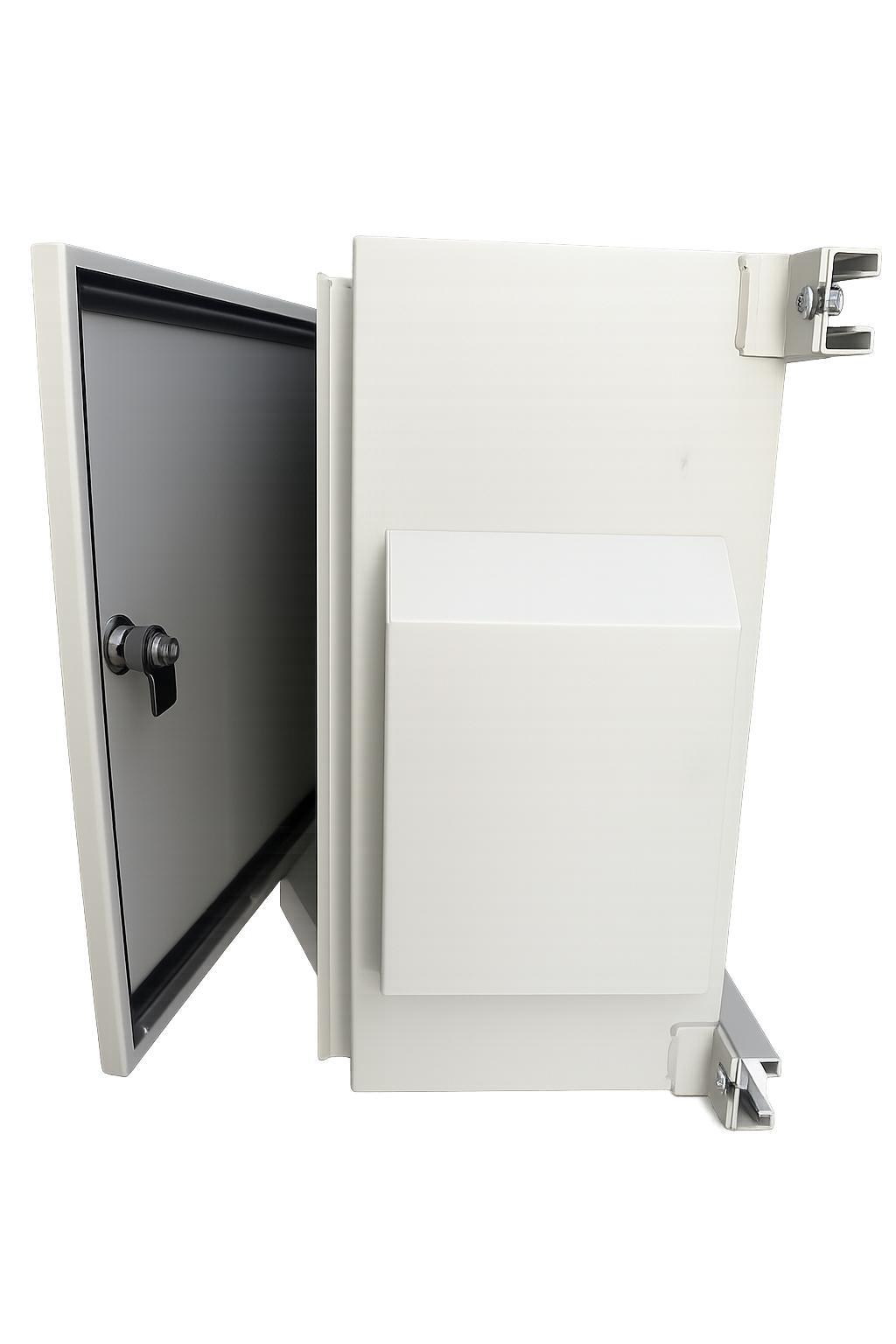

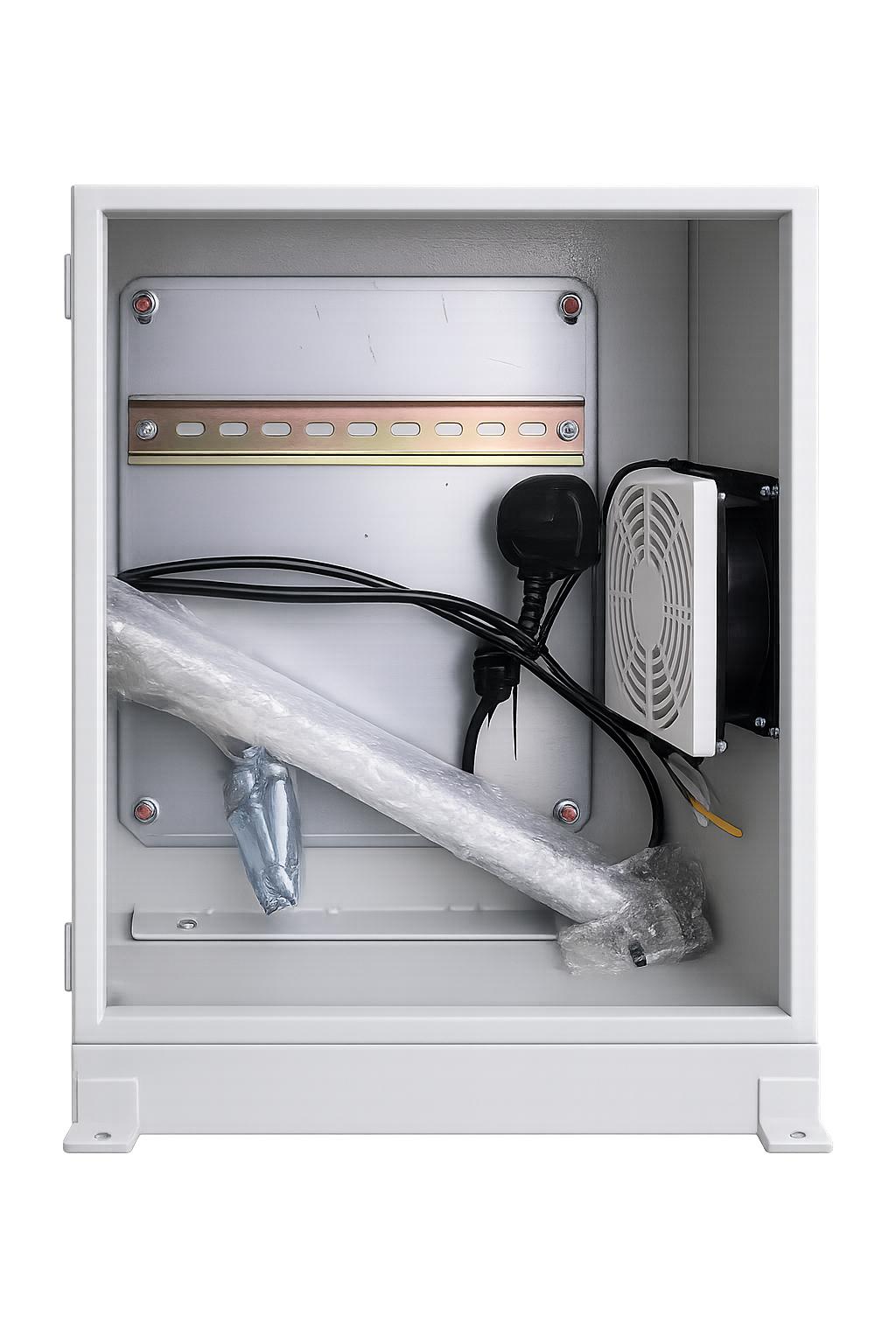

The enclosure is constructed with a robust monoblock welded body using 1.2 mm thick galvanized steel, ensuring high structural strength and durability. The door is fabricated from 1.2 mm galvanized steel, while the mounting plate is made from 1.5 mm galvanized steel for enhanced load-bearing capacity.
The surface treatment includes a multi-stage process comprising iron phosphating and nano coating, followed by a RAL 7035 epoxy polyester outdoor powder coating, providing superior resistance against corrosion, UV exposure, and harsh environmental conditions.
The enclosure offers IP66 protection in accordance with IEC 60529, achieved through a high-quality polyurethane casting gasket, ensuring complete protection against dust ingress and powerful water jets.
It delivers mechanical impact resistance rated at IK10, compliant with TS EN 62262, and meets durability testing requirements as per TS EN 60068-2-75.
Scope of Supply:
| Name | Certificate |
|---|---|
| EU Certificate | View Certificate |
| Test Report | View Certificate |
| Test Report | View Certificate |
