14 AWG SHIELDED

14 AWG SHIELDED

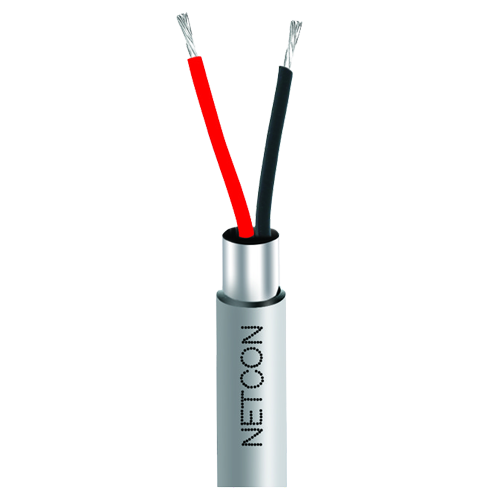

Shielded Cables | 2 Core

  • Type: Screened Multi-Conductor Cable
  • Length Availability: 305 meters and above (custom lengths available upon request)
  • Conductor: N x Bare Copper wire, 12 AWG flexible
  • Insulation - Polyolefin
  • Rip Cord : Nylon Yarn
  • Screen : Aluminum / Polyester Tape
  • Drained Wire : Tinned Copper wire
  • Sheath & Color: PVC / LSZH & Standard Grey
  • Insulation : PE (High Density Polyethylene)
  • Foil Coverage : 100%
  • Drain Wire : Tinned Copper
Applications: Audio systems,Control systems,Instrumentation, Building Management Systems (BMS), Security systems
Essential in environments with high levels of electrical noise or in situations requiring precise control and communication. Applications include industrial automation, audio and video systems, medical equipment, transportation systems, and renewable energy systems Applications Foil Shielded Control Cables - General-purpose signal and data transmission. Braid Shielded Control Cables - Industrial environments with high levels of electrical noise Combination Shielded Control Cables - Sensitive signal transmission in high-interference areas
Name Certificate
ROHS Certificate View Certificate
IEC Certificate View Certificate
Test Report View Certificate
CE Certificate View Certificate
PHYSICAL
Drain Wire Size (AWG) 24 (7 x 32)
Min. screen Coverage 115
No of cores 2
Nom. Diameter Conductor (mm) 1.8
Nom. Radial Thickness Sheath (mm) 0.8
Nom. Overall Diameter (mm) 6.5
Operating Temperature (ºC) 0 to +60
Max. Recommended Pulling Tension (N) 420
Max. Bend Radius (Install) (mm) 65
Nominal Cable weight (kg/km) 68
Nom. Radial Thickness Insulation (mm) 0.3
STANDARDS
STANDARDS (BS) EN 50290-2, IEC 60228,NFC 725.154 (A), ANSI / NFPA 262, RoHS dir ectives
ELECTRICAL
Max. Recommended Current at 25ºC (amps) 8
No of cores 2
Max. DC Resistance Conductor (Ohm/km) 9.36
Max. DC Resistance Screen (Ohm/km) 78.5
Capacitance Conductor to Conductor (pF/m) 248
Capacitance Conductor to other Conductors + Screen (pF/m) 452
Max. Operating Voltage (Vrms) 300
DESIGN
Rip cord Nylon yarn
Drain Wire Tinned Copper wire
Screen Aluminium / Polyester Tape
Sheath Material Flame- Retardant - LSZH / Polyvinyl Chloride (PVC) Standard Colour: Grey
Standard Put Up Length 305 meters
Insulation PVC Core 1: Black Core 2: White Core 3: Red Core 4: Green Core 5: Brown Core 6: Blue Core 7: Orange Core 8: Yellow
Conductor Flexible Bare Copper wire
