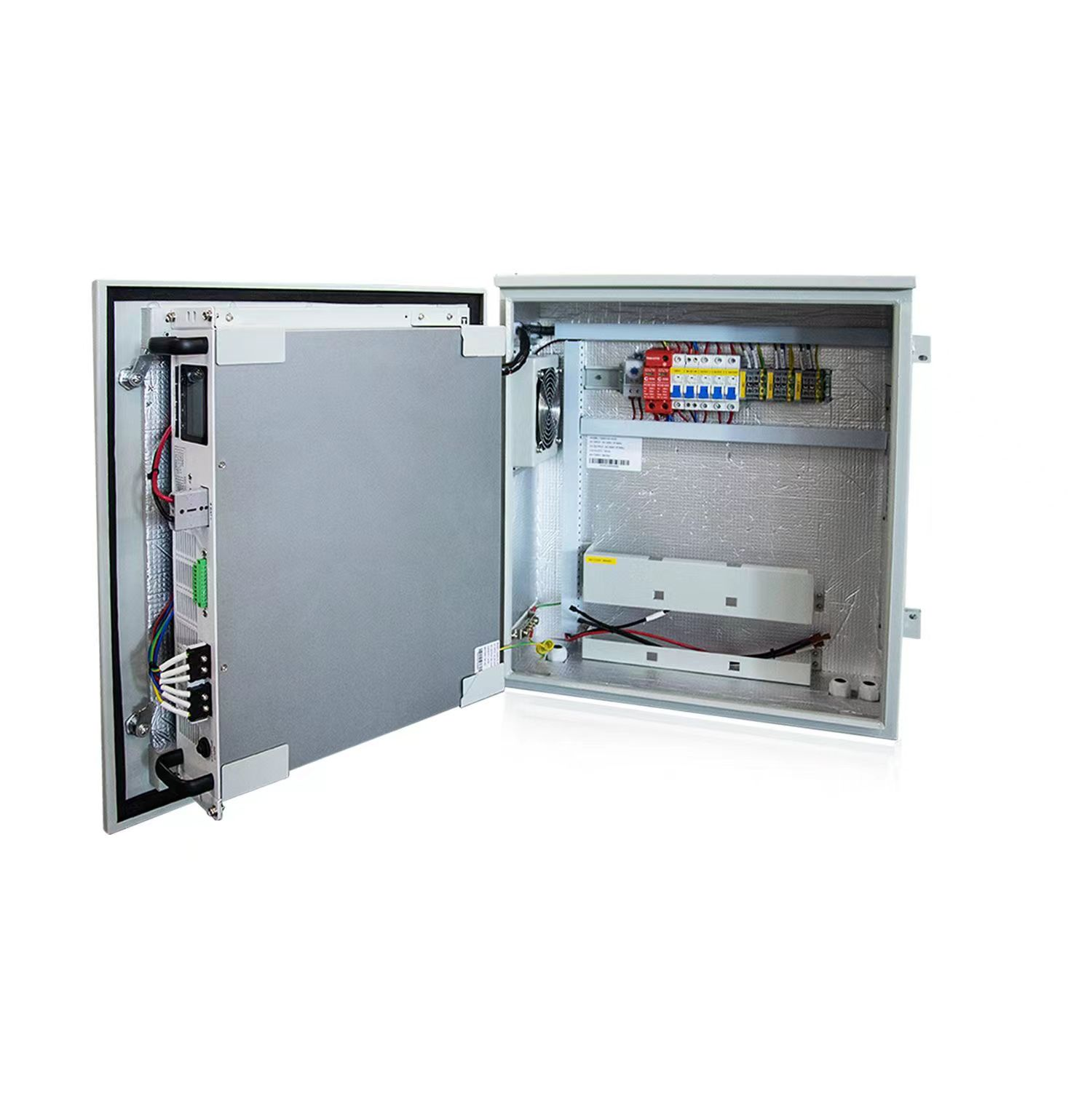

Pole / Wall Mount Outdoor UPS

Pole / Wall Mount Outdoor UPS

Outdoor UPS | 1KVA/0.8KW

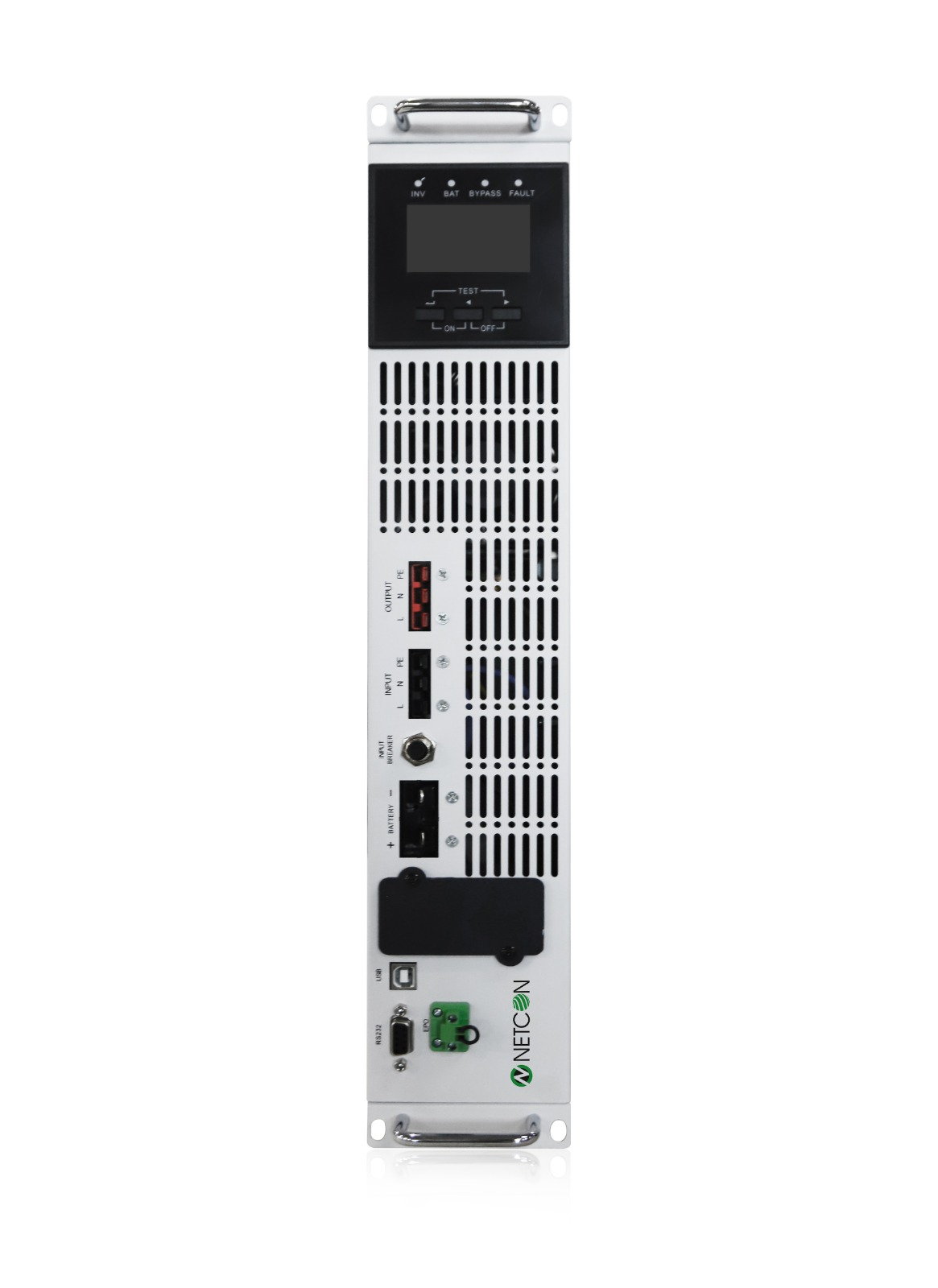

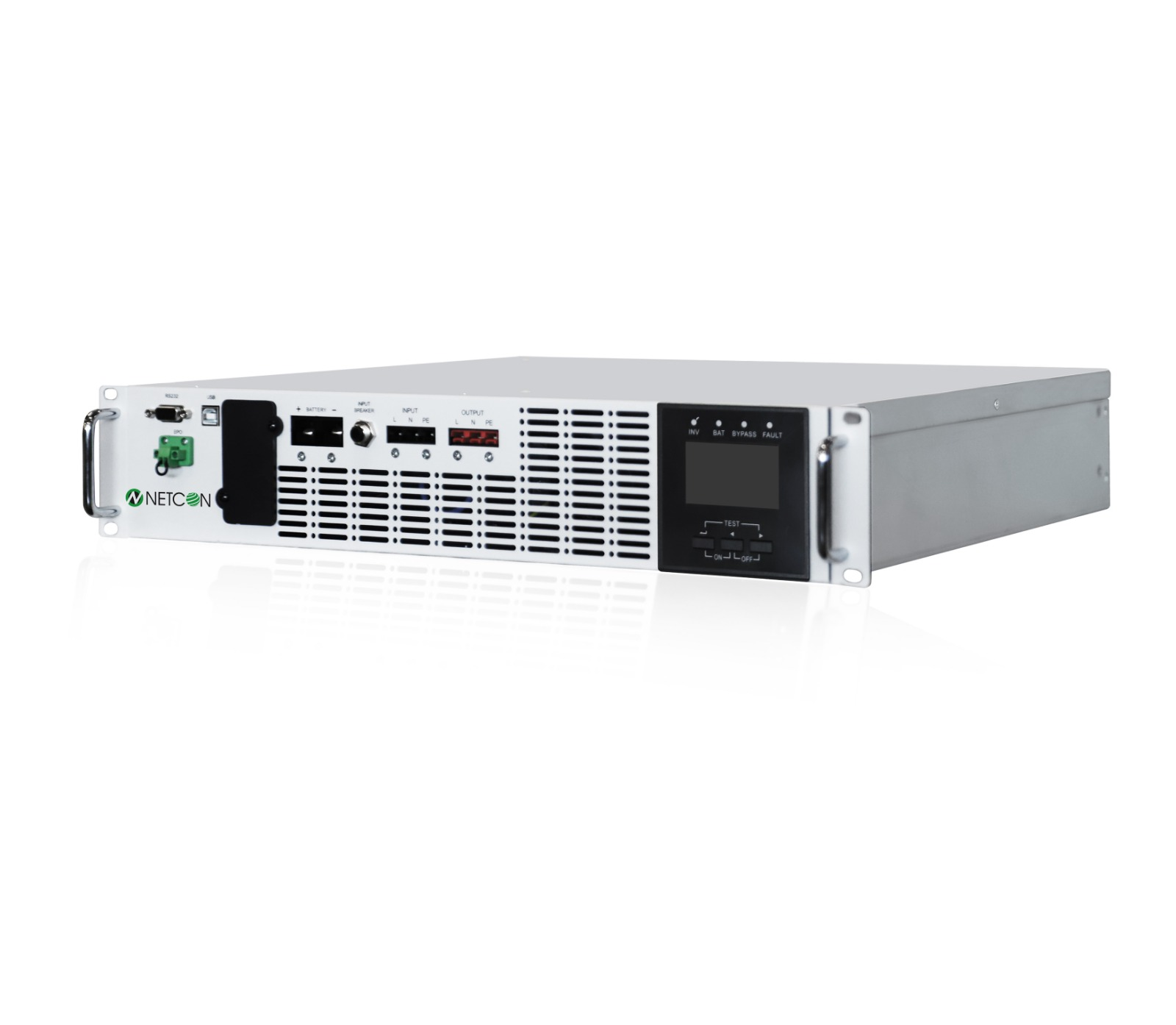

  • Drawer-Type Control Unit: Easier to install and maintain.
  • Boost and Buck AVR: Stabilizes voltage under varying input conditions.
  • Auto Restart: Restores operation automatically when AC power recovers.
  • Microprocessor Control: Optimizes performance and enhances reliability.
  • Lightning Protection: Safeguards equipment from surge damage.
  • Built-in Network Monitor Card: Enables remote monitoring and management.
  • Super Smart Charger: Shortens battery charging time.
  • Built to endure: IP-rated for dust, water, and extreme temperature protection.
  • Battery Options: Supports Lithium-Ion or VRLA for flexible backup needs.
  • Easy Installation & Maintenance: Designed for quick deployment on poles or walls.
Applications: Networking equipment, traffic systems, and applications in remote or rural areas
Designed for outdoor communication and networking equipment, traffic control systems, and other applications in city corners, countryside, or mountainous areas. High temperature resistance, frost resistance, corrosion resistance, dust prevention, and water resistance. Advanced functions include wide input voltage and frequency range, high reliability, energy saving, environmental protection, anti-thunder, remote control, and remote detection. Guarantees stable power supply to communication, networking, traffic control, and other devices. An ideal helpmate for running important outdoor devices.
INPUT
Power factor ＞0.90
Nominal Voltage (Vac) 208/220/230/240VAC, L+N+PE
Voltage Range 100-300VAC
Frequency Range 50/60Hz±0.1%
Harmonic distortion (THDi) ≤4% (linear load); ≤5% (non-linear load)
OUTPUT
Crest Factor 3:1
Output waveform Pure sine wave
Voltage Range 208/220/230/240VAC, L+N+PE
Voltage Precision ±2%
Overload Line mode: 30min@102%-110% load, 10 min@110-130% load 30s@130%-150% load, 200ms@＞150% load Battery mode: 1min@102%-110% load, 10s@110-130% load 3s@130%-150% load, 200ms@＞150% load
THDu ≤2% (linear load); ≤5%（non-linear load）
Transfer time Line mode to battery mode, 0ms; inverter to bypass, 4ms (typical)
Wave Distortion Linear load <3%; Non-linear load <6% 110% 150%, for 30 seconds later, transfer to bypass;
BATTERY
Battery Type Lithium-Ion / VRLA battery
Battery Mode Two/Three-period charging
DC Voltage 36VDC
Charging current (Max.) 4A
Battery Number 8Ah*3pcs Internal
ENVIRONMENT
Altitude Up to 1000m without derating
Humidity range 0-95% (non-vcondensing)
Operating temperature 0-55°C
Noise level ＜50dB@1 meter
SYSTEM FEATURES
Communication RS232/USB port/SNMP card (optional)/Dry contact kit (optional)
