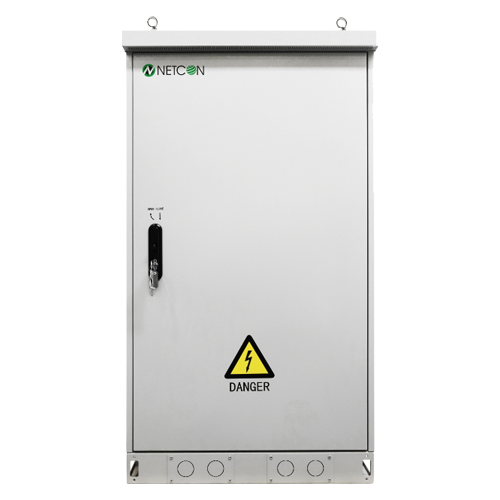

10KVA Outdoor UPS

10KVA Outdoor UPS

Outdoor UPS | 10KVA/8KW

  • Control: Full digital control for stable and reliable performance
  • Environment Adaptability: Reliable operation in diverse conditions.
  • Reliability & Efficiency: High reliability with energy-saving design.
  • IP Protection: IP55-rated dust and water resistance.

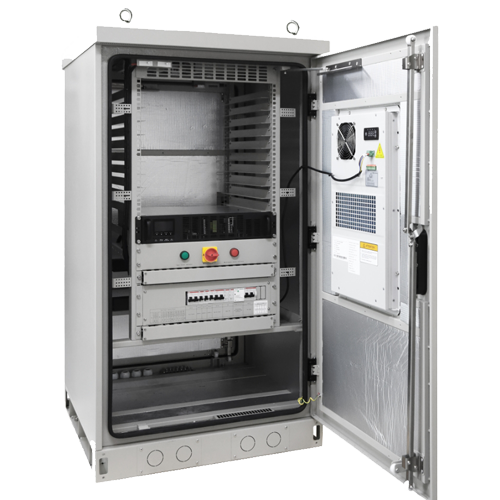

  • Internal Battery Storage: Built-in compartment for battery storage.
  • Grid Compatibility: Wide adaptability to power grid variations.
  • Intelligent Monitoring: Optional unattended automated monitoring.
  • Comprehensive Protection: Multiple safety and protection features.
  • Cooling Options: Fan or AC with emergency fan start at 40 °C.
  • Communication: Supports RS232,  Dry Contact (Optional), and SNMP Card
Applications: Networking equipment, traffic systems, and applications in remote or rural areas
Designed for outdoor communication and networking equipment, traffic control systems, and other applications in city corners, countryside, or mountainous areas. High temperature resistance, frost resistance, corrosion resistance, dust prevention, and water resistance. Advanced functions include wide input voltage and frequency range, high reliability, energy saving, environmental protection, anti-thunder, remote control, and remote detection. Guarantees stable power supply to communication, networking, traffic control, and other devices. An ideal helpmate for running important outdoor devices.
Name Certificate
EMC report View Certificate
IEC Certificate View Certificate
IEC Test Report View Certificate
EMC Certificate View Certificate
IEC Certificate View Certificate
LVD Test Report View Certificate
INPUT
Power factor 0.98
Voltage Range 176-297VAC
Soft Start 0~100%, 5sec
Frequency Range 50HZ(46-54Hz)/60HZ (56-64HZ)
OUTPUT
Transfer time Oms (line to inverter)
Overload > 150%, for 200ms later, transfer to bypass; When load is normal, it can automatically transfer to normal mode.
Voltage Precision ±2%
Crest Factor 3:1
Wave Distortion Linear load <3%; Non-linear load <6% 110% 150%, for 30 seconds later, transfer to bypass;
Frequency Precision 50/60Hz+0.05Hz
Voltage Range 220/230/240VAC (Customizable: 110/120/127VAC)
Power Factor 0.8
PHYSICAL
Approx. Net Weight 155KG
Approx. Dimension (D×W×H) 940*940*1770
BATTERY
Capacity (Standard unit) Optional (Battery type and capacity choose by customer)
Charging current (Max.) 4A/8A (optional)
DC Voltage 192VDC
ENVIRONMENT
Altitude 1500m
Humidity range 0-95% (Non-condensing)
Operating temperature Fan scheme: working temperature 0-40 °C; Air conditioning scheme: working temperature 0-60 C (heater optional)
Noise level 50dB(1m away)
INDICATORS
LED Display (LED version) Yes
LCD Display (LCD version) Yes
SYSTEM FEATURES
Communication RS232, SNMP card (optional), Dry contact (optional)
IP Class IP55
