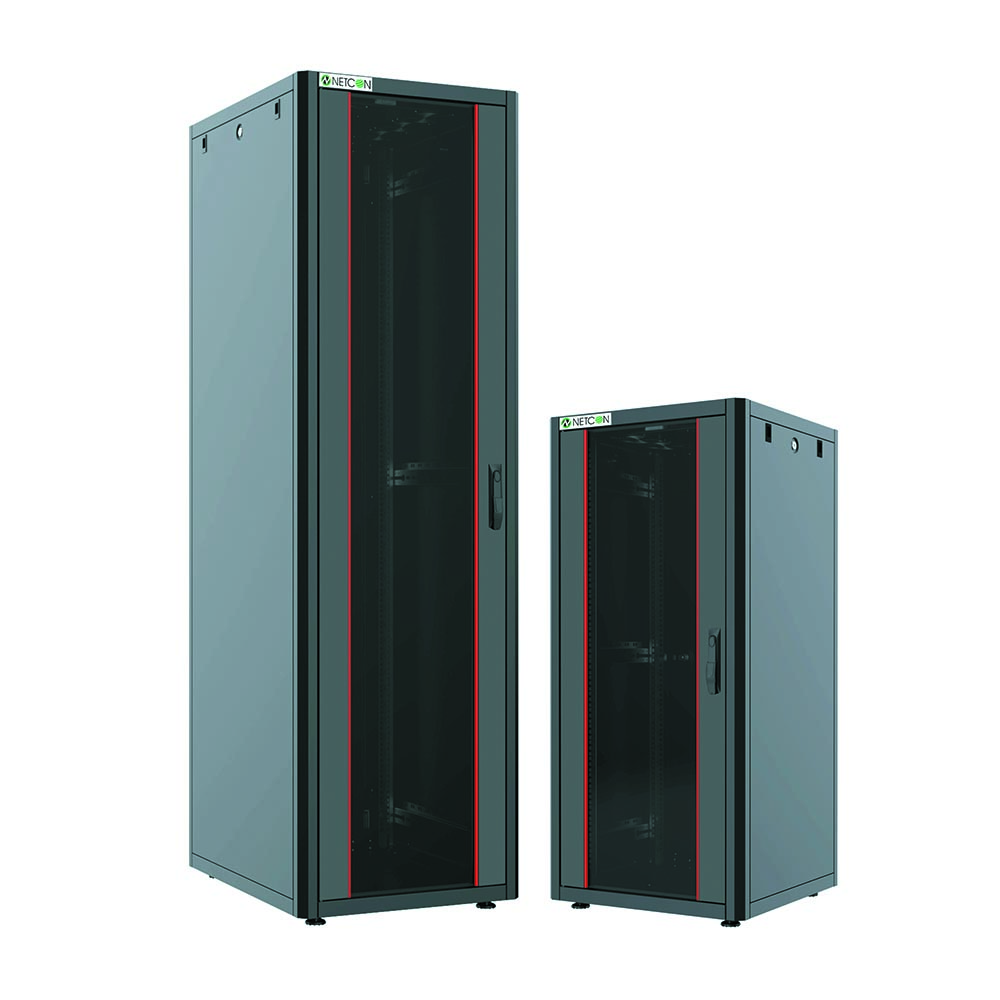

Construction:

• High-quality cold-rolled steel frame

• Welded & bolted design for maximum strength and stability

• Powder-coated finish (standard color: Black RAL 9005)

Sizes Available:

• Heights: 18U / 27U / 36U / 42U / 45U / 47U

• Widths: 600mm / 800mm

• Depths: 600mm / 800mm / 1000mm / 1200mm

Load Capacity:

• Static load capacity: up to 800 kg

Doors & Panels:

• Front door: Tempered glass or perforated steel, lockable with 180° opening

• Rear door: Perforated steel with secure lock

• Removable and lockable side panels for easy access

Cable Management:

• Top and bottom cable entry with removable gland plates

• Vertical and horizontal cable management options available

Ventilation:

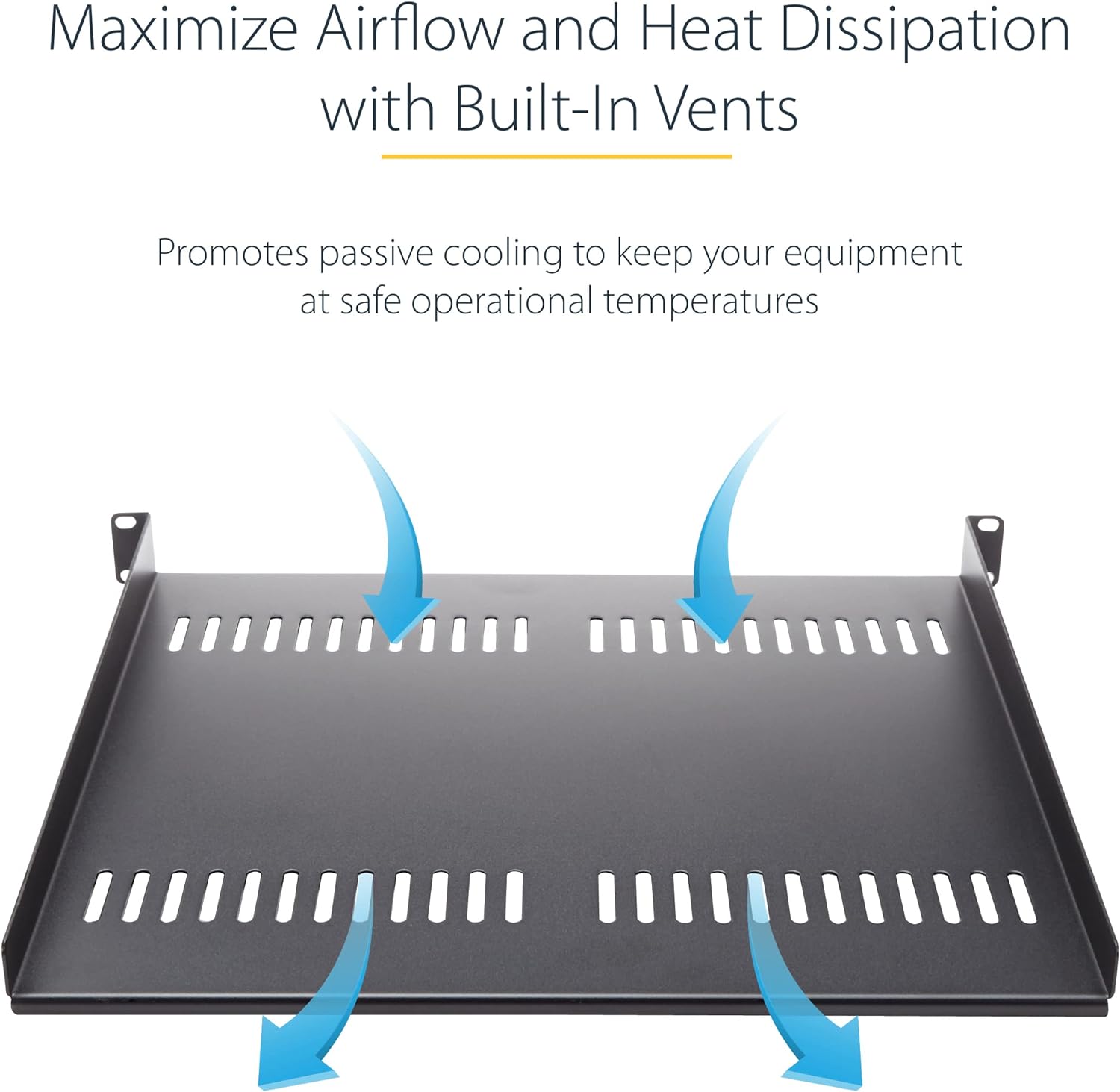

• Optimized airflow design with perforated panels

• Fan tray option (2 / 4 / 6 fans) for active cooling

Mounting & Accessories:

• 19” adjustable mounting rails (marked with U positions)

• Compatible with shelves, PDU, and cable organizers

• Casters and leveling feet included

Standards Compliance:

• IEC 60297 / EIA-310-D

• RoHS compliant
