Netcon SNMP Monitoring Card

Netcon SNMP Monitoring Card

Accessories | NTKPM220

    • Provides remote monitoring of UPS status (input/output voltage, frequency, battery status, load level, etc.).

    • Sends automatic alerts via email, SNMP traps, or Syslog during power events.

    • Supports scheduling for safe shutdown of connected servers during extended outages.

    • Offers web-based interface for easy management.

    🔹 Typical Uses:

    • Data centers

    • Server rooms

    • Industrial facilities

    • Enterprises needing 24/7 uptime

Applications: Data centers, Server racks, Networking racks, Telecommunications closets, Office IT setups, Storage servers, Industrial control panels

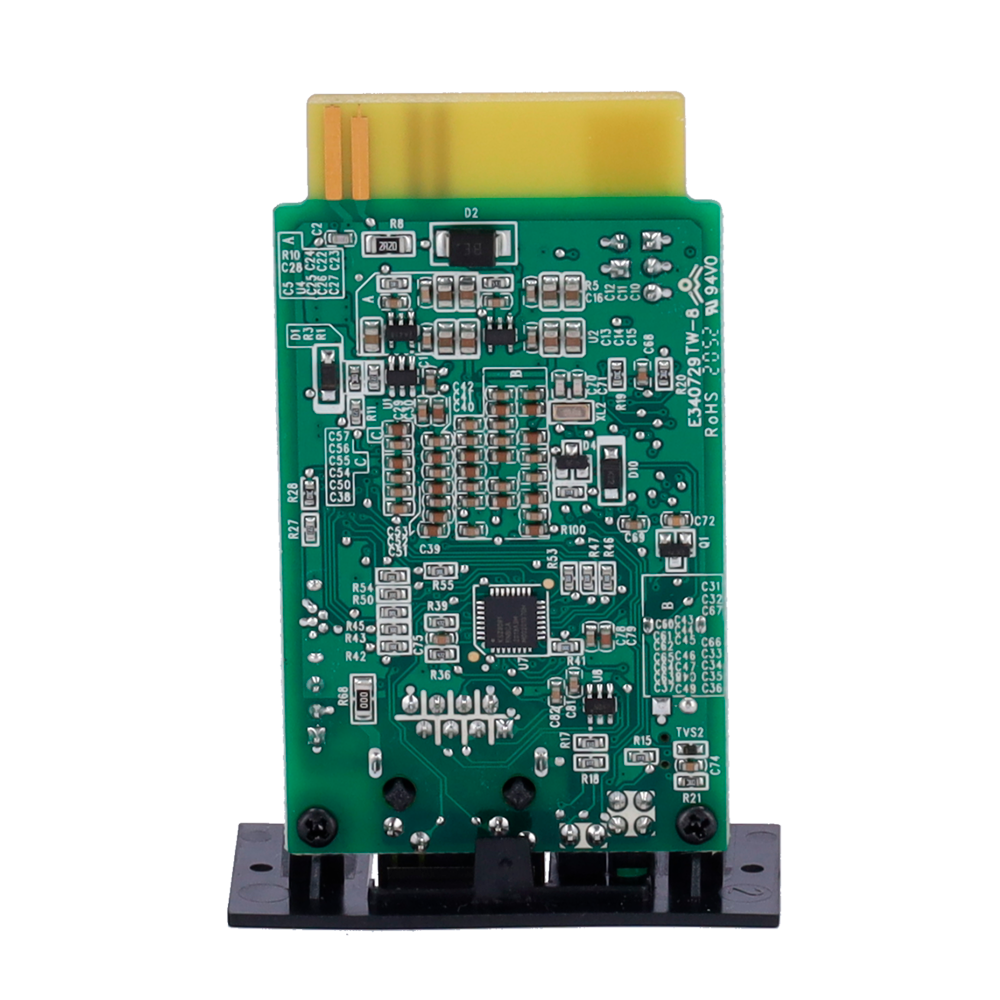

Netcon UPS SNMP (Simple Network Management Protocol) network card used to remotely monitor and manage an Uninterruptible Power Supply (UPS) system. It installs directly into a compatible UPS to provide network connectivity, allowing administrators to view real-time data and control the power supply over a web-based interface.

  • Network SNMP card for UPS monitoring
  • For installation in UPS slot and network connection
  • Compatible with Windows, Mac, Linux
  • UPS management via HTTP, SNMP and TCP/IP
  • ARM CPU 300MHz 32-bit
  • 64M SDRAM Byte
CPU ARM 300MHz 32-bit
SYSCLK 300MHz
Flash memory 128M NAND FLASH Byte
SDRAM 64M SDRAM Byte
LAN port 10/100M UTP
Operating system Windows, Mac, Linux
Functioning Allows programmed UPS startup/shutdown
Allows programmed battery discharge
Allows UPS shutdown in case of an event
Supports SSL/TLS encrypted messages
Dimensions 26 (H) x 52 (W) x 81 (D) mm
Weight 43g
