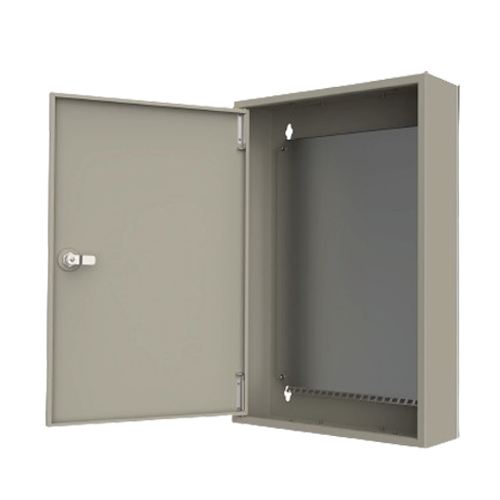

WALL-BOX ENCLOSURE WITH MOUNTING PLATE

WALL-BOX ENCLOSURE WITH MOUNTING PLATE

Wall Mount IP Enclosures | IP20

  • Design : Monoblock Welded Body
  • Body : 1.2mm Galvanized Steel
  • Door : 1.2mm Galvanized Steel, Mounting Plate, 1.5mm Galvanized Steel
  • Coating : Iron, Phosphate, Nano Coating and RAL 7035 Epoxy Polyester Outdoor Powder
  • IP Protection : IP66 – Polyurethane Casting Seal (IEC 60529)
  • Mecahnical Resistance : IK10 (TS-EN 62262) – TS-EN-60068-2-75
  • Product Contents : 1 pcs Body, 1 pcs Door, 1 pcs Mounting Plate, 4 pcs Wall Mounting Kit
  • Ground Type : Floor or concrete base mounting with plinth options
  • Wall Type : Easy wall installation with Wall Mounting Kit
  • Pole Type : Pole mounting via adjustable clamp system
  • Plinth Type : Galvanized steel plinths (100 / 200 / 300 mm), RAL7035 coated, sealed with polyurethane, fixed with M8 x 15 screws
Applications: Electrical / Electronic / Industrial / Automation / Telecom / VDI purposes
The design features a monoblock welded body made of 1.2mm galvanized steel, with a door and mounting plate also crafted from 1.2mm and 1.5mm galvanized steel, respectively; coated with iron, phosphate, nano coating, and RAL 7035 epoxy polyester outdoor powder coating; offering IP66 protection through a polyurethane casting seal (IEC 60529); mechanical resistance of IK10 (TS-EN 62262) and compliance with TS-EN-60068-2-75; and includes 1 body, 1 door, 1 mounting plate, and 4 wall mounting kits.
Name Certificate
Test Report View Certificate
EU Certificate View Certificate
Test Report View Certificate
