Wall Mount Racks | 4U to 27U

  • Design: Welded steel frame with electrostatic powder-coated finish
  • Mounting: Suitable for wall or standing installation
  • Front Door: 180° opening angle; glass

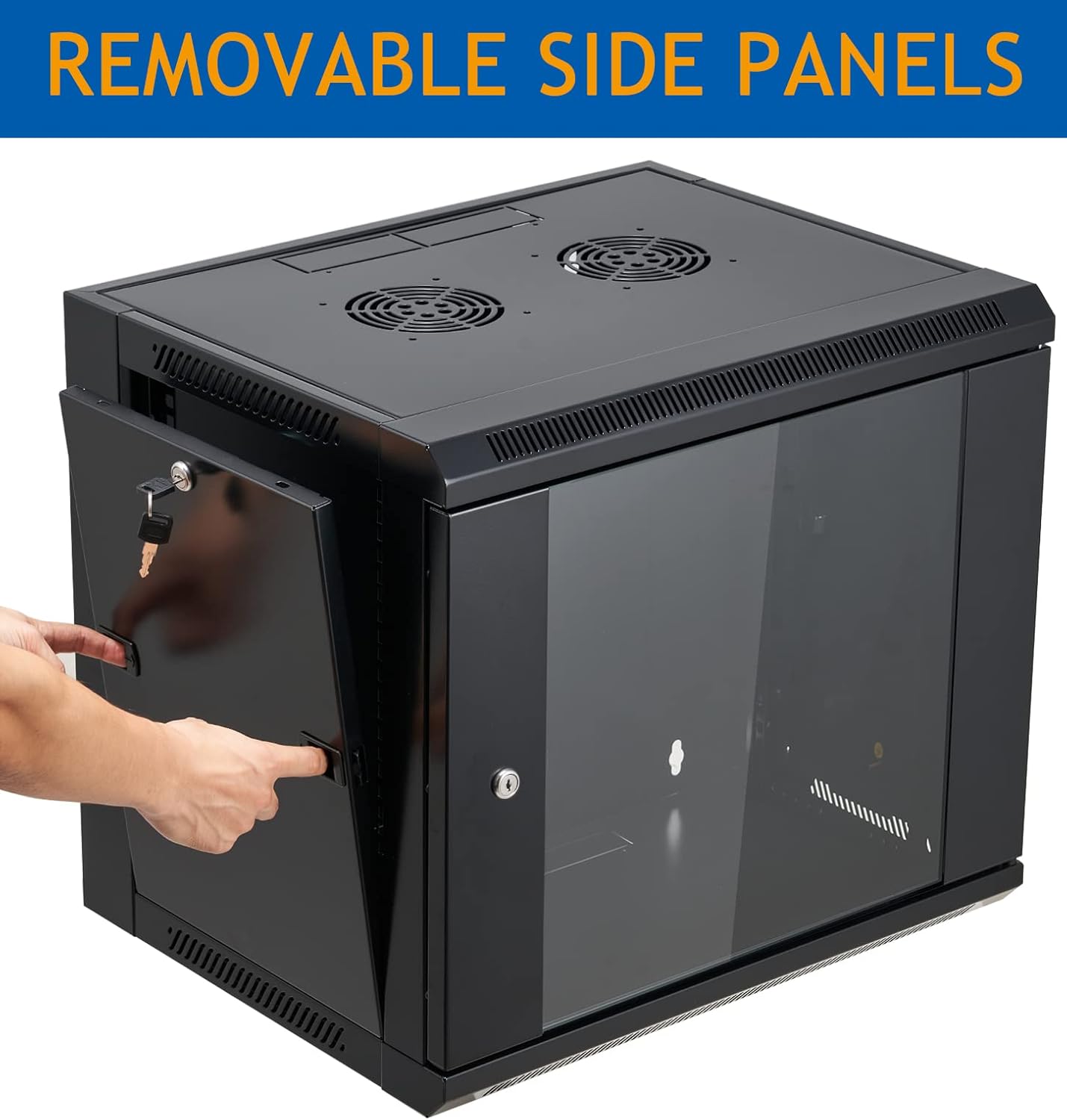

  • Panels: Removable side panels
  • Cable Entry: Provision at both top and bottom
  • Material: SPCC cold-rolled steel (1.2 mm)
  • Protection: IP20 rated
  • Load Capacity: 60 kg
  • Sizes Available: 4U, 6U, 9U, 12U, 15U, 18U, 20U, 22U, 27U
  • Finish & Color: Degreased, phosphated, powder-coated
Applications: cabinets designed for home / office environment

The WMR Series Wall Mount Cabinets are designed for home and office use, offering a welded steel frame with an electrostatic powder-coated finish for durability. They support easy standing or wall mounting installation, with features like a 180° front door opening, removable side panels, and top and bottom cable entry. Made from SPCC cold-rolled steel, these cabinets meet multiple international standards (ANSI/EIA RS-310-D, DIN41497, IEC297-2) and have an IP20 protection rating with a 60 kg load capacity.

Name Certificate
CE certificate 1 View Certificate
IEC Certificate View Certificate
EU certificate View Certificate
CE certificate 2 View Certificate
TECHNICAL
Side Panel 1.2 mm SPCC cold rolled steel
Cable entry cover 1.2 mm SPCC cold rolled steel
Fan cover 1.2 mm SPCC cold rolled steel
Mounting Profile 1.2 mm SPCC cold rolled steel
Lock with 2 keys Stainless steel
Frame 1.2 mm SPCC cold rolled steel
M6 Square nut Steel
M6 head screw Steel
Front glass door 5mm toughened glass door /1.2 mm SPCC cold rolled steel
Allen wrench Steel
Mounting Panel 1.2 mm SPCC cold rolled steel
