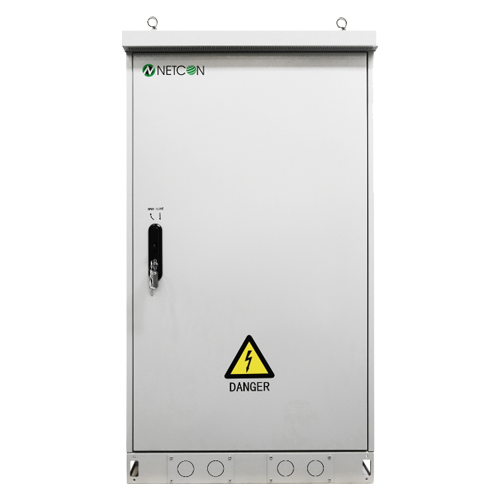

1KVA Outdoor UPS

Outdoor UPS | 1KVA/0.8KW

Control: Full digital control for stable and reliable performance
Environment Adaptability: Reliable operation in diverse conditions.
Reliability & Efficiency: High reliability with energy-saving design.
IP Protection: IP55-rated dust and water resistance.

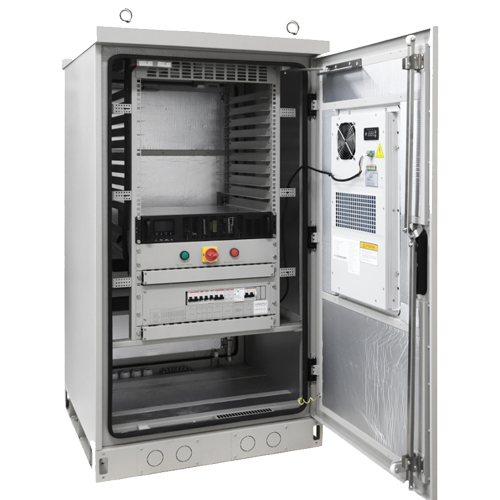

Internal Battery Storage: Built-in compartment for battery storage.
Grid Compatibility: Wide adaptability to power grid variations.
Intelligent Monitoring: Optional unattended automated monitoring.
Comprehensive Protection: Multiple safety and protection features.

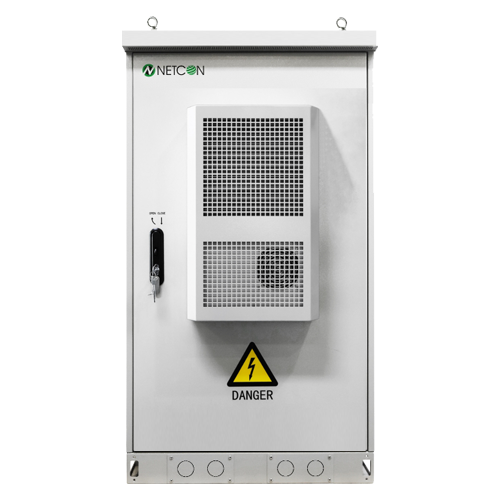

Cooling Options: Fan or AC with emergency fan start at 40 °C.
Communication: Supports RS232, Dry Contact (Optional), and SNMP Card

Applications: Networking equipment, traffic systems, and applications in remote or rural areas

Datasheet

Designed for outdoor communication and networking equipment, traffic control systems, and other applications in city corners, countryside, or mountainous areas. High temperature resistance, frost resistance, corrosion resistance, dust prevention, and water resistance. Advanced functions include wide input voltage and frequency range, high reliability, energy saving, environmental protection, anti-thunder, remote control, and remote detection. Guarantees stable power supply to communication, networking, traffic control, and other devices. An ideal helpmate for running important outdoor devices.

Name	Certificate
IEC Certificate	View Certificate
EMC report	View Certificate
EMC Certificate	View Certificate
IEC Certificate	View Certificate
IEC Certificate	View Certificate
LVD Test Report	View Certificate

INPUT
Power factor	0.98
Frequency Range	50HZ(46-54Hz)/60HZ (56-64HZ)
Soft Start	0~100%, 5sec
Voltage Range	115-295VAC
OUTPUT
Voltage Range	220/230/240VAC (Customizable: 110/120/127VAC)
Wave Distortion	Linear load <3%; Non-linear load <6% 110% 150%, for 30 seconds later, transfer to bypass;
Frequency Precision	50/60Hz+0.05Hz
Voltage Precision	±2%
Overload	> 150%, for 200ms later, transfer to bypass; When load is normal, it can automatically transfer to normal mode.
Crest Factor	3:1
Transfer time	Oms (line to inverter)
Power Factor	0.8
PHYSICAL
Approx. Dimension (D×W×H)	613640954
Approx. Net Weight	85KG
BATTERY
DC Voltage	36VDC
Charging current (Max.)	4A/8A (optional)
Capacity (Standard unit)	Optional (Battery type and capacity choose by customer)
ENVIRONMENT
Humidity range	0-95% (Non-condensing)
Operating temperature	Fan scheme: working temperature 0-40 °C; Air conditioning scheme: working temperature 0-60 C (heater optional)
Noise level	50dB(1m away)
Altitude	1500m
INDICATORS
LCD Display (LCD version)	Yes
LED Display (LED version)	Yes
SYSTEM FEATURES
IP Class	IP55
Communication	RS232, SNMP card (optional), Dry contact (optional)
